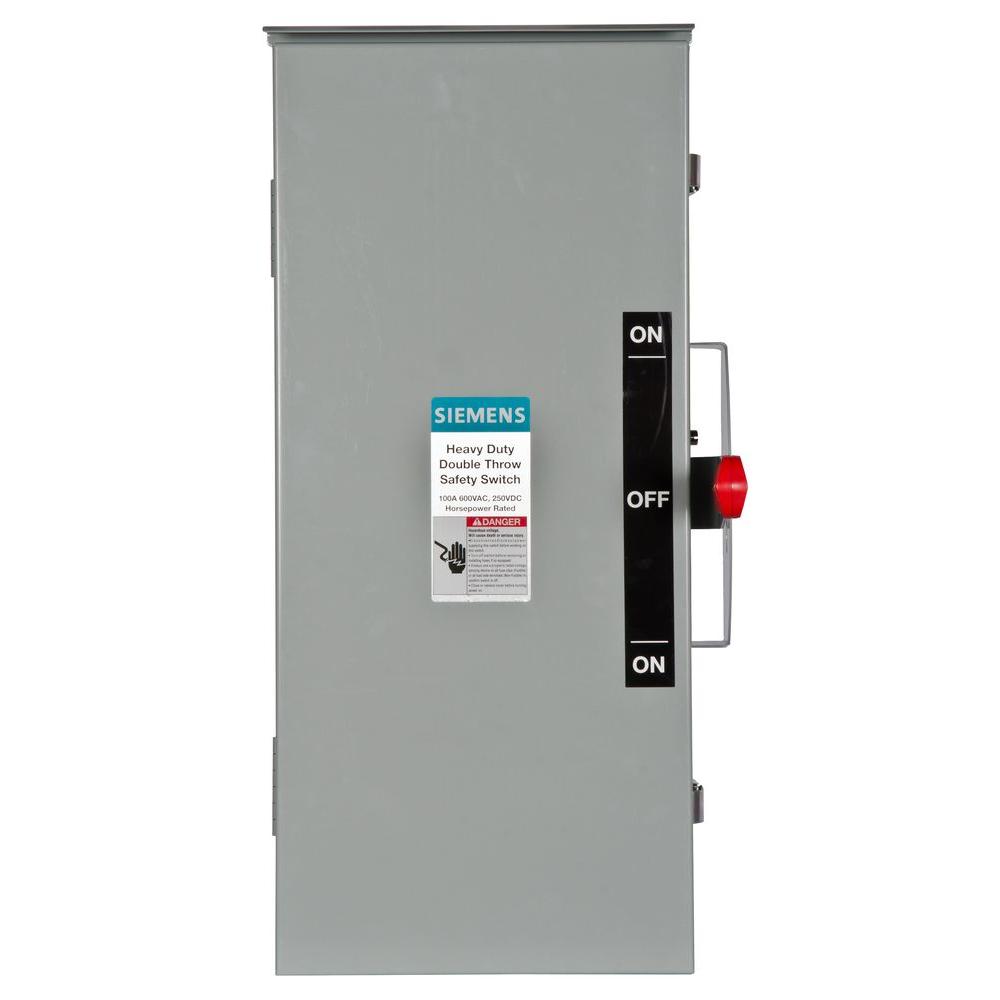

Siemens 600-Volt Non-Fusible Safety Switch

Double Throw switches are intended to transfer loads from one power source to another. All 2 and 3-pole double throw switches are suitable for use as service equipment including non-fusible versions when used in combination with a UL listed circuit breaker or fusible switch. All are UL Listed and both horsepower and load break rated. Switches are rated for use on systems up to 10,000 Amp when protected with Class H fuses or 100,000 Amp when protected with Class R or Class T fuses. They can also be used to connect a single source of power to either of 2 loads.

100 Amp, 3 phase, 3 wire, 3 pole, non-fusible safety switch for outdoor application
Quick-make and break switching action
Double break visible blade design
Highly visible on/off indication
Modular design allows quick and easy replacement of parts
Front removable lugs which can easily be converted to copper body or compression type lugs
Defeatable dual cover interlock
All copper current carrying parts
Tangential knockouts
Handle is padlockable in off position
NEMA type 3R: enclosure is intended for outdoor use primarily to provide a degree of protection against falling rain and sleet and must remain undamaged by the formation or ice on the enclosure; they are not intended to provide protection against conditions such as dust, internal condensation, or internal icing
