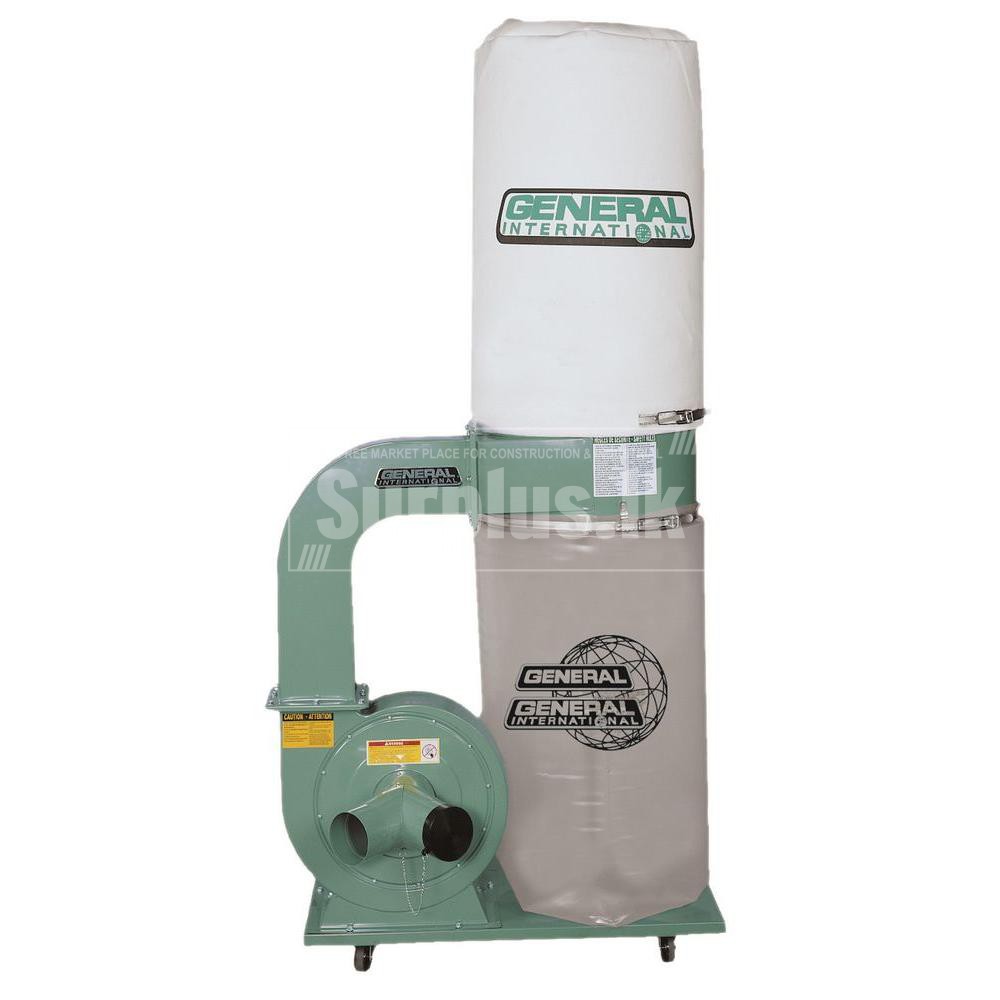

With a 1550 CFM airflow capacity, a totally enclosed fan cooled permanently lubricated 2 HP 220-Volt motor and a 12 in. precision spin-balanced impeller, the 10 – 110 M1 is designed for continuous duty applications. The collector body is mounted on a sturdy steel base with 4 swivel casters allowing complete mobility within the shop. Equipped with an ultra-fine 2 micron washable filter bag, a 42 Gal. re-usable clear plastic collector bag and a 6 in. main inlet fitted with a dual 4 in. Y-inlet fitting, the 10 – 110 M1 is ideal for collecting fine general purpose wood and composite dust, as well as wood chips, in shops where multiple machine hook-ups are required and can be used for both stationary as well as mobile applications. The main inlet is equipped with an intake screen to prevent larger pieces from jamming in the impeller. The sound rating during operation is 80-90 decibels and its overall dimensions are 39 in. x 31 in. x 79 in.

Totally enclosed, fan cooled, permanently lubricated motor; designed for industrial applications with a continuous duty rating
Heavy-duty base mounted on 4 swivel casters for total mobility and stability
Precision spin-balanced aluminum impeller for smooth operation and minimal noise
Heavy-duty collection bags made from extra thick, transparent, recyclable plastic
