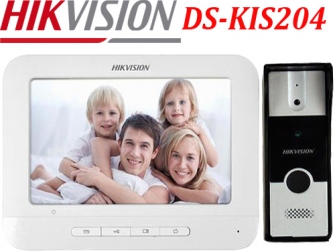

Video phone DS-KIS204

Key Features

Door Station

? Self-adaptive IR supplement

? One-touch calling

? Pinhole camera with 720 x 576 @ 25 fps

? Unlock controlling

Indoor Station

? Hands-free video intercom communication

? Supports monitoring the door station and the external analog camera

? Supports image capture (Max. 200) and overwrite when exceed 200

? Supports captured image playback

? Remote unlocking

? Convenient installation and easy

Video Door Phone Model DS-KIS204

Door Station (DS-KB2411-IM)

Video Parameters

Camera 1/4″ CMOS

Resolution 720 × 576

Video frame rate PAL: 25 fps

Audio parameters

Audio input Built-in Omnidirectional Microphone

Audio output Built-in Loudspeaker

Audio quality Noise Suppression and Echo Cancellation

Light Supplement

Light supplement mode Photosensitive IR Supplement, IR Range: 2 Meters

Device interfaces

Four-wire interface

1 Four-Wire Interface (1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power

Supply, 1-ch Grounding)

IO output 1 Relay Output

General

Material Aluminum Alloy

Power consumption Max. 3W

Working temperature -30° C to +60° C (-22° F to 140° F)

Working humidity 10% to 90%

Dimension (L x W x H) 128 mm × 42 mm × 24.8 mm (5.0″ × 1.7″ × 0.9″)

Indoor Station (DS-KH2220-S)

Display parameters

Display screen 7-Inch Colorful TFT LCD

Display resolution 800 × 480

Operation method Physical Button

Audio parameters

Audio input Built-in Omnidirectional Microphone

Audio output Built-in Loudspeaker

Audio quality Noise Suppression and Echo Cancellation

Device interfaces

Four-wire interface

4 Four-Wire Interfaces

1-ch Video Input, 1-ch Audio Input/Output, 1-ch Power Supply, 1-ch Grounding

General

Power supply 12 VDC

Power consumption ≤5 W

Working temperature -10° C to + 55° C (14° F to 131° F)

Working humidity 10% to 90%

Dimension (L x W x H) 195.8 mm × 132.8 mm × 18.39 mm (7.7″ × 5.2″ ×0.7″)
