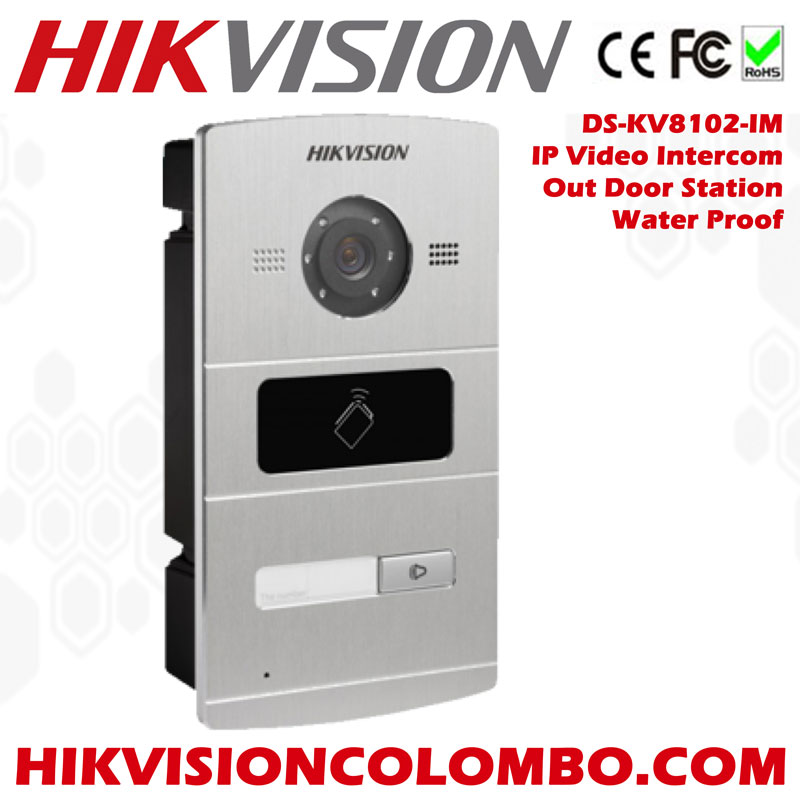

HIKVISION DS-KV8102-IM IP Video Intercom Outdoor Station

HIKVISION DS-KV8102-IM IP Video Intercom Outdoor Station in Sri Lanka
1.3 MP Villa Door Station, Aluminum alloy, 1-ch Indoor station access,
Camera resolution: HD720P, 25fps(P), IR Supplement;
10M/100M Self-adaptive Ethernet, RS-485;
4-ch alarm input,1-ch alarm output,
IP65, 12 VDC.

System Parameters
Processor: High-Performance Embedded SOC Processor
Operation System: Embedded Linux Operation System
Video Parameters
Camera: CMOS Low Illumination 1.3 MP HD Colorful Camera
Video Compression Standard: H.264
Resolution: 1280 x 720
Video frame rate: 25 fps
Audio Parameters
Audio Input: Built-in Omnidirectional Microphone
Audio Output: Built-in Loudspeaker
Audio Compression Standard: G.711 U
Audio Compression Rate: 64 Kbps
Audio Quality: Noise Suppression and Echo Cancellation
Network Parameters
Ethernet: 10/100 Mbps Self-Adaptive Ethernet
Network Protocol: TCP/IP, RTSP
Access Control Parameters
Internal Card Reader: Built-in IC Card Reader
Exit button: Exit Button for Opening the Door
Door Magnetic Detection: Detects Door Magnetic Status
Light Supplement
Light Supplement Mode: IR Supplement
Alarm Parameters
Alarm Input: Door Magnetic Alarm, Tampering Alarm
Device Interfaces
Network Interface: 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
RS-485: 1 RS-485 Half-Duplex Port
I/O Input: 4
I/O Output: 1
General
Indoor Station Access Amount: 1
Material: Aluminum Alloy
Power Supply: 12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)
Power Consumption: ≤12 W
Certification: FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Working Temperature: -40° C to +60° C (-40° F to 140° F)
Working Humidity: 10% to 90%
IP Protection Level: IP65
Dimensions(L × W × H): 182 mm × 100 mm × 33 mm (7.17″ × 3.94″ × 1.30″)
