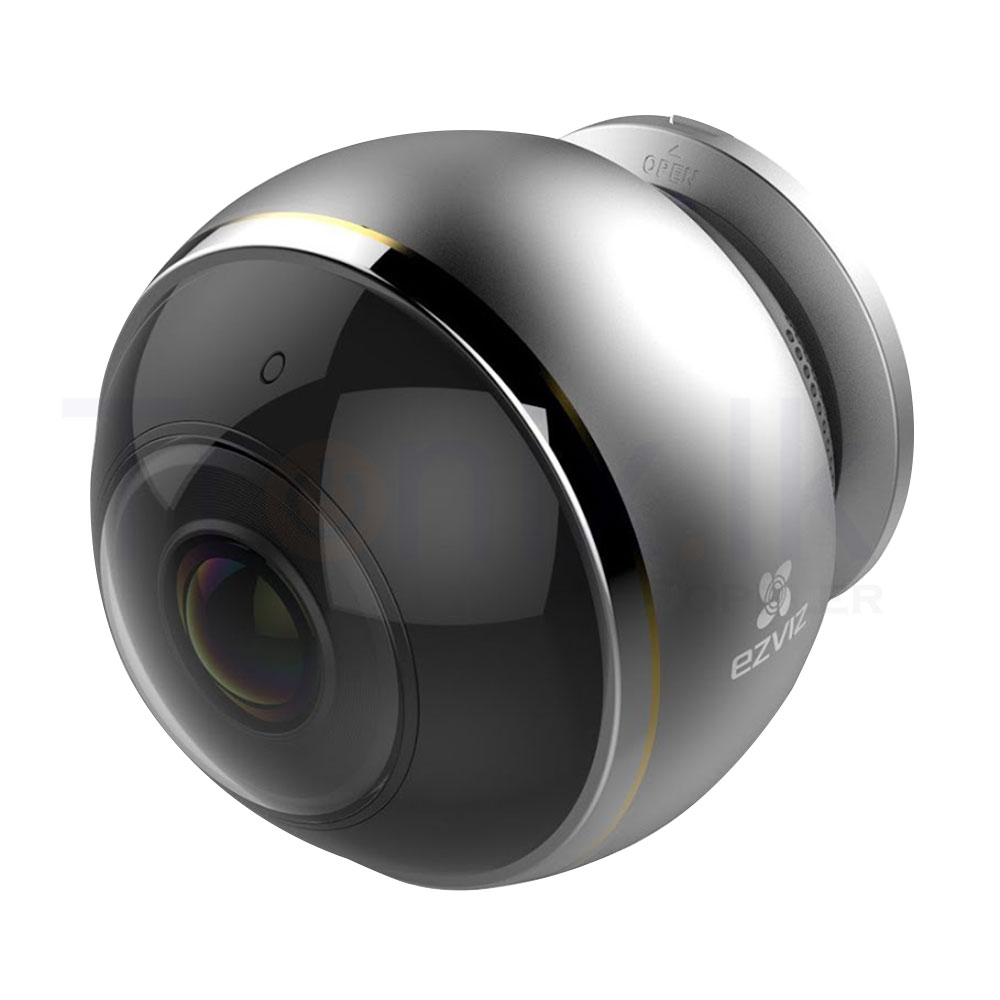

EZVIZ (Hikvision) Mini Pano CS-CV346-A0-7A3WFR

300M sensor / fisheye / quad-split view / Panorama / night vision / dual-band Wi-Fi

FASHION MODEL CS-C6P-7A3WFR
CAMERA
IMAGE SENSORS 3 megapixel 1 / 2.8 “Progressive Scan CMO
MINIMUM ILLUMINATION 0.01Lux® (F2.2, AGC ON), 0 Lux with IR
SHUTTER Self-adaptive shutter
LENS 1.2mm @ F2.2, Horizontal angle: 180 ° Diagonal angle: 180 °
LENS MOUNT M12
DAY & NIGHT IR cut filter
DNR 3D DNR
WDR Progressive WDR
COMPRESSION
VIDEO COMPRESSION H.264
H.264 TYPE Main Profile
VIDEO BIT RATE HD; balance; and fluency. Adaptive bit rate
MAX. RESOLUTION 1344 × 1344
FRAME RATE 50Hz / 60Hz: 15 fps (1344 × 1344),
IMAGE SETTING Brightness, contrast, saturation, etc. (configure via Ezviz studio)
BLC Support
NETWORK
STORAGE Support Micro SD card (Max 128G)
SMART ALARM Motion detection
ONE-KEY CONFIGURATION Wi-Fi configuration via QR code
PROTOCOLS Ezviz cloud proprietary protocol
INTERFACE PROTOCOL Ezviz cloud proprietary protocol
GENERAL FUNCTION Flicker filter, dual-stream, heartbeat, mirror image, password protection
watermark
WIRELESS PARAMETERS
STANDARD IEEE802.11a / b / g / n / ac
FREQUENCY RANGE 2.412GHz ~ 2.462GHz / 5.15GHz ~ 5.35GHz / 5.725GHz ~ 5.825GHz
CHANNEL BANDWIDTH Support 20/40 / 80MHz
SECURITY WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
TRANSMISSION RATE 11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps
