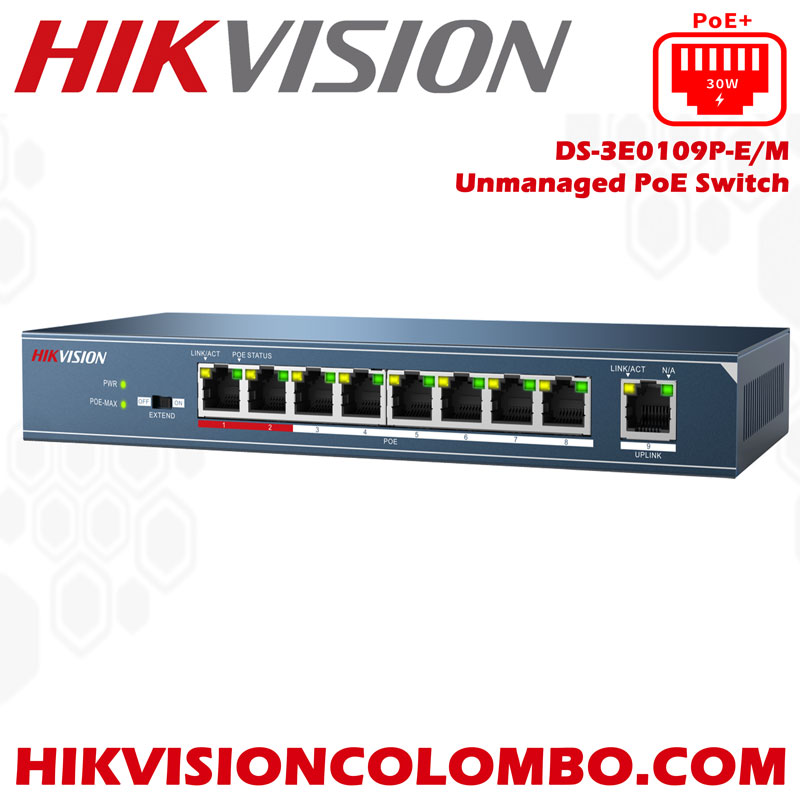

DS-3E0109P-E/M Unmanaged PoE Switch

Hikvision DS-3E0109P-E/M Unmanaged PoE Switch in Sri Lanka
9*10/100 Base-TX Ethernet ports

Supports standard and EXTEND network mode

Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab Ethernet standards

Store-and-Forward switching

4K MAC address table and MAC address learning

1.8 Gbps backplane bandwidth

All-mental construction

Desktop and wall-mounted installation

Ports
10/100M RJ45: 9
Port of high priority: Port 1 – 2
Performance
Switching Capacity: 1.8 Gbps
Store-and-forward: Supported
MAC address table: 4 k
MAC address learning: Auto-learning/ Auto-aging
Power Over Ethernet
PoE Standard: IEEE 802.3af, IEEE802.3at
Working Mode: EXTEND OFF, EXTEND ON
PoE cable core: Supports 8-pin power supply
PoE port: 1 – 8
Port max. power: 30 W
Switch max. power: 58 W
General
Power Supply: 51 V DC，1.25 A
Power Consumption: ≤63w
Working Temperature: Operating Temperature: 0 °C ~ 40 °C
Working Humidity: Operating Humidity: 10% – 90% RH non-condensing
Storage Temperature: Storage Temperature: -40 °C ~ 70 °C
Storage Humidity: Storage Humidity: 5% – 90% RH non-condensing
