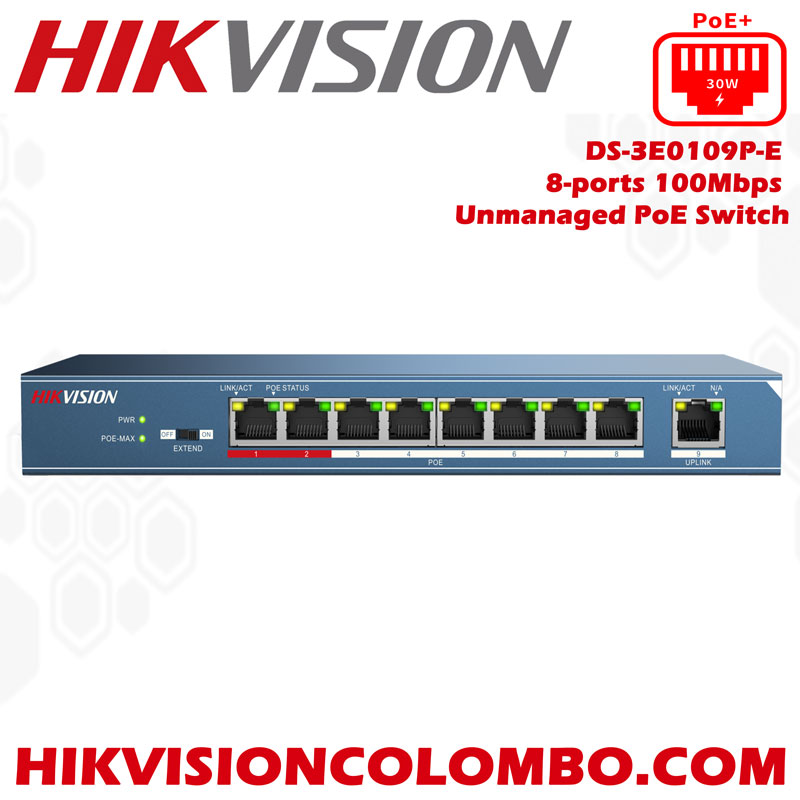

DS-3E0109P-E 8-ports 100Mbps Unmanaged PoE Switch

DS-3E0109P-E8-ports 100Mbps Unmanaged PoE Switch in Sri Lanka
IEEE 802.3at and IEEE 802.3af Power over Ethernet (PoE) compliant

8 x 10/100Mbps Auto-MDIX PoEports

Provides up to 30 watts per PoE port

PoE power budget 123W

4 kV surge protection for PoE ports

IEEE 802.3x flow control support

Plug-and-play installation

1.8 Gbps switching fabric

1.25 MbitsRAM Data Buffer

4K MAC address entries

Sturdy metal enclosure

Ports
Network Ports: 9
PoE Port: 8, 10/100Mbps RJ45 ports
Uplink Port: 1, 100M Ethernet Port
Standard
Network Protocol: IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
Performance
Switching Capacity: 1.8Gbps
Max. Forwarding Rate: 1.34Mpps
High Priority Ports: Ports 1-2
Forwarding Mode: Store-and-forward
MAC Address Table: 4k
Flow Control: IEEE802.3x full duplex
Power Over Ethernet
PoE Standard: IEEE802.3af, IEEE802.3at
PoE Power Budget: 123W
Working Mode: Extend On:250m,10M,CAT 5e
Extend Off:100m
General
Power Supply: 51V DC, 2.5A
Power Consumption: ≤127W
Surge Protection: 4KV
Working Temperature: Temperature: 0℃-40℃
Working Humidity: Humidity: 10%-90% , non-condensing
Storage Temperature: Temperature: -40℃-70℃
Storage Humidity: Humidity: 5%-90% , non-condensing
Weight: 0.57kg
Dimension: 235mm*103mm*27mm
