DS-2CD2T27G3E

ColorVu E 2MP Warm LED Bullet Network (DS-2CD2T27G3E-L)

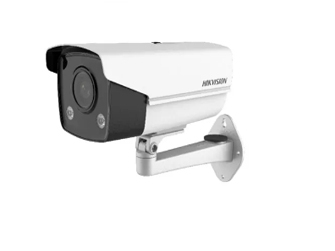

ColorVu E 2MP Warm LED Bullet Network Camera

Max. 1920 × 1080 @25fps
4 mm/6 mm fixed lens
H.265+, H.264+
120dB WDR
0.0035 @ F1.0 (1/30 s, AGC ON), 0.005 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on
12 VDC & PoE (802.3af, class 3)
Built-in micro SD/SDHC/SDXC slot, up to 128G IP67
BLC/3D DNR/HLC/ROI
24-hour colorful video

Model DS-2CD2T27G3E
Camera
Image Sensor 1/2.8 inch progressive scan CMOS
Min. Illumination 0.0035 @ F1.0 (1/30 s, AGC ON), 0.005 @ F1.2 (1/30 s, AGC ON), 0 Lux with LED on
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Adjustment Range Pan: 0° to 360°, tilt: 0° to 90°
Day &Night IR cut filter
Digital Noise Reduction 3D DNR
WDR 120 dB
Focus Fixed
Focal length 4/6 mm
Aperture F1.0
Lens Mount M16
DNR 3D DNR
Compression Standard
Video Compression H.265+, H.264+
Video Bit Rate 32 Kbps to 8 Mbps
Max. Resolution 1920 × 1080
Image Enhancement BLC/3D DNR/HLC
Image Setting Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
ROI Support 1 fixed region for main stream
Network
Network Storage Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS, SMB/CIFS), ANR
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Alarm Trigger Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
System Compatibility ONVIF (PROFILE S, PROFILE G), ISAPI
Interface
On-board storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Communication 1 RJ45 10M/100M self-adaptive Ethernet port
Smart Feature-set
Behavior Analysis Line crossing detection, intrusion detection
General
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug, PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.5 A, max: 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max: 6.5 W
Weather Proof IP67
Dimensions 114 × 110 × 220 mm
Weight 900g
