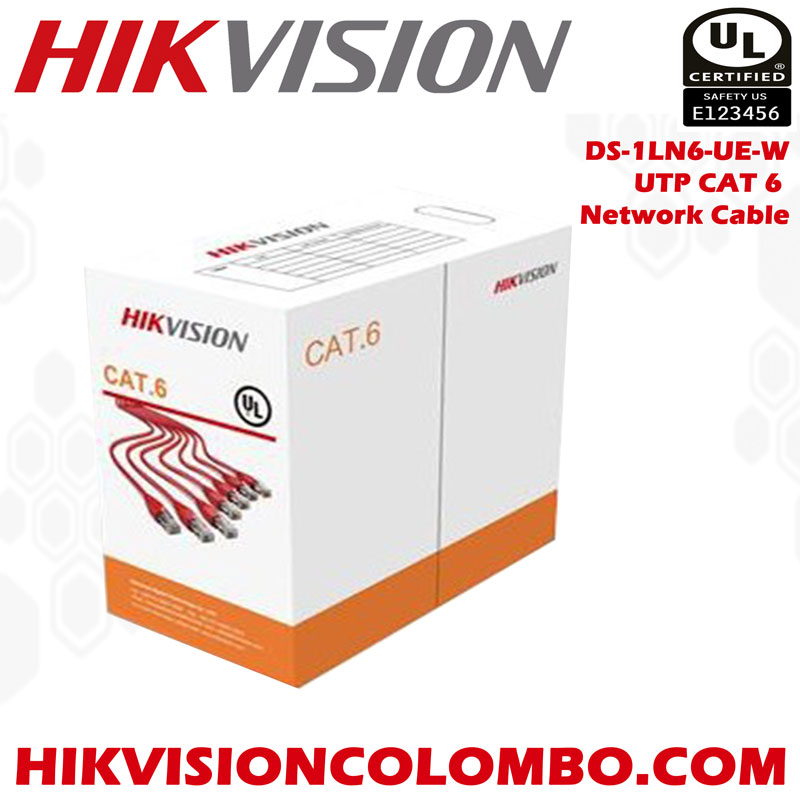

DS-1LN6-UE-W UTP CAT 6 Network Cable

DS-1LN6-UE-W UTP Hikvision CAT 6 Network Cable in Sri Lanka
Cable
Category: U/UTP CAT6-4P-PVC-CM
Test Standard: ISO/IEC11801、TIA-568-C.2 、YD/T1019
Conductor
Material: SOLID-Bare Copper
Copper content: 99.97%
Nom.O.D.(mm): 0.530
up +0.005
down -0.005
Insulation
Material: HDPE
Diameter: 0.95±0.03mm
Sheath
Thickness: 0.55±0.05 mm
External O.D.: 5.8±0.4 mm
Surface: Clean,Frap,Satiation
Material: PVC(complies RoHS),CM
Color: White
Surface Printing
Letter height: 3.0±0.3mm
Color: Black
Print error & Space: ≤±0.5%，1m
General
Core Color: 1 White- Blue /Blue
2 White-Orange /Orange
3 White-Green /Green
4 White- Brown /Brown
Packing: Wooden Tray & Carton
Carton dimension: Per request
Packing length: 305±1.5m
Rip-cord: Yes
Drain wire: No
Sheath Physical Properties: Before Aging Tensile Strength (Mpa) ≥13.5
Elongation(%) ≥150
Aging Period (℃×hrs) 100℃×24h×10d
After Aging Tensile Strength(Mpa) ≥12.5
Elongation(%) ≥125
Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks
Electrical Characteristics: 1.0-250.0MHz Impedance ((Ω) 100±15
1.0-250.0MHz Delay Skew (ns/100m) ≤45
DC Resistance (Ω/100m) max 9.38
DC Conductor Resistance Unbalance (%) max 5.0
Ambient temperature: -20℃ – 75℃
