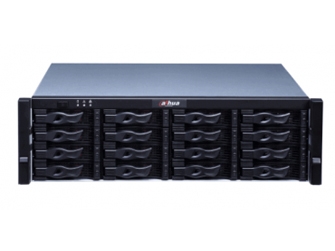

DHI-NVR616-128-4KS2

NVR616-128-4KS2
128 Channel Super 4K H.265 Network Video Recorder
>Intel Processor
>Max 128 IP Camera Inputs
>Max 384Mbps Incoming Bandwidth
>Up to 12MP Resolution for Preview and Playback
>Supports RAID 0 /1/5 /6/10 /50 /60
>iSCSI and Mini SAS for Expanded Storage Space
>Smart Tracking and Intelligent Video

System
Main Processor Intel Quad-core Processor
Operating System Embedded LINUX
Display
Interface 2 HDMI (up to 3840 x 2160 , Different Source), 1 VGA 4 HDMI (Optional)
Resolution 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
Multi-screen Display 1st Screen: 1/4/8/9/16/25/36
2nd Screen: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank
Alarm input 16 Channel, Low Level Effective, Green Terminal Interface
Relay Output 8 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event Targeting, Zoom, Tracking, Recording, Snapshot, Alarm, etc.
Playback and Backup
Playback 128 Mbps in Raid 5 Mode 64 Mbps in single HDD Mode
Search Mode Time /Date, Alarm, MD and Exact Search (accurate tosecond)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network/Internal SATA burner/eSATA Device
Storage
Internal HDD 16 SATA III Ports, Up to 6 TB capacity for each HDD
HDD Mode Single, Raid 0/1/5/6/10/50/60 (Support Global HDD Hot-spare)
eSATA 1 eSATA Port
SAS 1 Mini SAS Port, for Storage Expansion
Auxiliary Interface
Front Cover Support Hot-swap
USB 4 USB Ports (3 USB 2.0 , 1 USB 3.0 )
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control
Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Audio and Video
IP Camera Input 128 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA
Recording
Compression H.265/H.264/MJPEG
Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc.
Record Rate 384Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Alarm, Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network
Interface 4 RJ-45 Ports (10/100/1000Mbps)
Ethernet Port 4 Ethernet Ports Joint Working or 4 Independent 1000Mbps Ethernet Ports
PoE N/A
Network Function HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Optical Fiber Interface 2 Giga Optical Fiber Interface
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant
Electrical
Power Supply AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption <51W (Without HDD)
Environmental
Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions(W×D×H) 3U, 485mm x 512.9mm x 133.2mm (19.1" x 20.2" x 5.2")
Net Weight 17.6kg (38.8 lb) (without HDD)
Gross Weight 27kg (59.5 lb)
Installation Rack-mounted
Certifications
CE EN55022, EN55024, EN50130-4, EN60950-1
FCC Part 15 Subpart B, ANSI C63.4-2014
