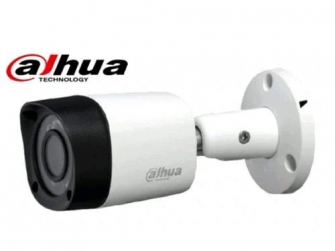

DH-HAC-HFW1000R

>1/4″ 1Megapixel CMOS
>25/30fps@720P
>High speed, long distance real-time transmission
>HD and SD switchable
>OSD Menu, control over coaxial cable
>DWDR, Day/Night(ICR), AWB, AGC, BLC, 2DNR
>3.6mm fixed lens (2.8mm optional)
>Max. IR LEDs length 20m, Smart IR
>IP67, DC12V

Model DH-HAC-HFW1000RP
Camera
Image Sensor 1/4″ 1Megapixel CMOS
Effective Pixels 1280(H)×720(V)
Electronic Shutter 1/50s~1/100,000s
Video Frame Rate 25fps@720P
Synchronization Internal
Mini. Illumination 0.05Lux/F2.0, 0Lux IR on
Video Output 1-channel BNC high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Max. IR LEDs Length 20m, Smart IR
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation DWDR
Noise Reduction 2D
OSD Menu Support
Lens
Focal Length 3.6mm (2.8mm optional)
Angle of View H: 60° (83.4°)
Mount Type M12
General
Power Supply DC12V±25%
Power Consumption Max 2.8W
Working Environment -40°C~+60°C / Less than 95%RH (no condensation)
Transmission Distance Over 800m via 75-3 coaxial cable
Ingress Protection IP67
Dimensions(W×D×H) F70mm×154mm
Weight 0.2kg
Material Plastic
