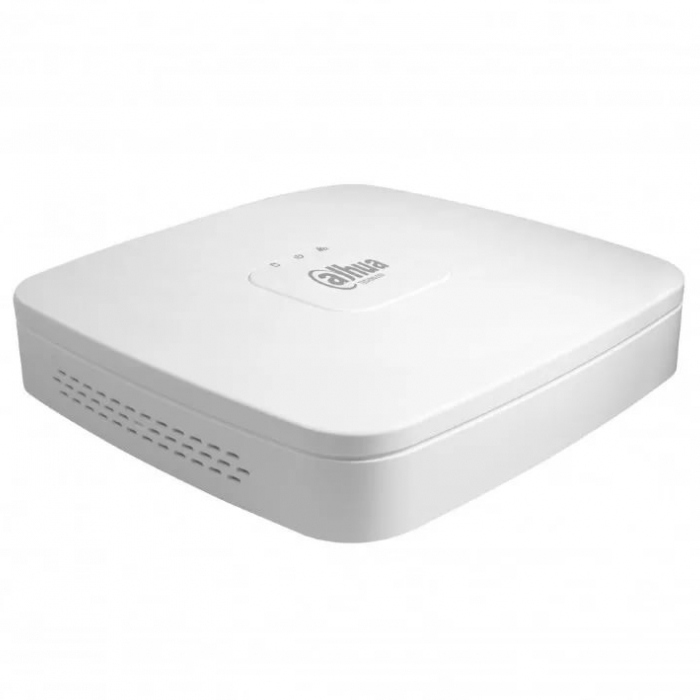

Dahua 8Ch NVR DHI-NVR1B08

Video recorder network, 8 channels, H.265 + / H.264 +, bandwidth 80Mbps, support up to 8MEGA (3840×2160) resolution, 1 HDD SATA 3.5 ”, up to 6 TB, 1 audio input / 1 output, 2 USB ports 2.0, HDMI video outputs (with 4K resolution, 3840×2160) and VGA, 1 100Mbps Ethernet port, PTZ, support for iPhone, Android, ONVIF, support for Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, equipment, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, etc., <4W (without HDD), 204.6×206.6×45.2 mm, 430 g (without HDD), DC12V / 2A

Purpose Network IP DVR NVR1B04 / 08 is a complete independent IP device designed to collect, display and store video information, a point of autonomous or centralized security. The video stream is received in a digital format over an Ethernet network using the IP protocol. The digital image received from video cameras can be displayed on the monitor. Operation in rooms is allowed. Special features Network Video Recorder NVR1B04 / 08 is designed to collect, display and store video information. The DVR is equipped with HDMI, VGA video outputs for connecting a monitor with a working resolution of up to 3840×2160 pixels, audio input, audio output and USB ports for peripheral devices, which allows you to create an operator’s workplace on its base, without having to install a PC. This device is implemented technology ANR (technology automatic replenishment of the network). Network video recorders with the ANR function automatically save the video data on the SD card of the IP camera when the network is disconnected, and after the network is restored, it automatically extracts the video data stored on the camera. The DMSS application allows you to remotely access the device, view live video, receive notifications of events at any time and almost anywhere. The ability to connect a hard disk to 6TB. The optimized H.265 codec provides savings of up to 50% of network bandwidth (compared to H.264) and reduces the cost of storing video without loss of quality. The registrar of this model is a compact and budget solution for office or private home. Specifications
4/8 IP channel for connecting network cameras
1 audio input, 1 audio output (RCA)
Incoming bitrate up to 80Mbps
Video outputs HDMI (3840×2160) and VGA (1920×1080)
Write resolution 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / D1 & etc
16 kbps bit rate – 20 Mbps per channel
H.265 / H.264 codec support
ONVIF protocol support, work with third-party cameras
Free software for remote connection (Windows, iOS, macOS, Android), P2P support
Connection 1 SATA HDD (up to 6 TB)
Multi-user multi-level access with password protection (simultaneously max. 128 users)
Supported protocols HTTP / HTTPS, TCP / IP, IPv4 / IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, IP Search (Support Dahua IP camera, DVR, NVS and etc.), P2P
Compatibility ONVIF, SDK, CGI
2 USB 2.0 ports for connecting peripheral devices
Power supply – DC12V / 2A adapter, consumption <4W (without hard drives)
1 Ethernet port: 100Mbps for connecting to a local network
Overall dimensions 204.6х204.6х45.2mm, smart 1U
Weight 0.43kg (without hard drives)
Operating temperature -10 … + 55 ° C, permissible storage temperature -20 … + 70 ° C, humidity 0 … 90%
