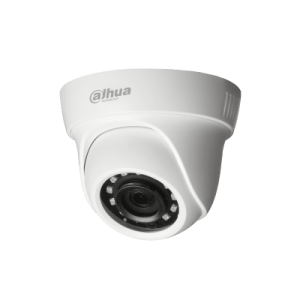

Dahua 5MP WDR IR Eyeball Network Camera DH-IPC-HDW1531S

1/2.7” 5Megapixel progressive CMOS
H.265& H.264 dual-stream encoding
20fps@5M(2592×1944) &25/30fps@3M(2304×1296)
WDR(120dB), Day/Night(ICR), 3DNR, HLC, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) &
DMSS
2.8 mm fixed lens (3.6mm optional)
Max IR LEDs Length 30m
IP67, PoE

System Overview
The IR Megapixel Fixed camera delivers 5MP resolution with a 2.8mm/3.6mm fixed lens.The camera’s elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.
Functions
Smart Codec (H.265+ & H.264+) Smart Codec is the optimized implementation of standard video compression (H.265 & H.264) that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart Codec technology reduces bit rate and storage requirements by up to 70% when compared to the standard video compression. Intelligent Video Analysis (IVS) Dahua camera is equipped with a built-in intelligent analytic algorithm based on video, which can realize intelligent functions like Tripwire and Intrusion, to quickly and accurately respond to monitoring events in specific area, It can enhance monitoring efficiency. In addition, the camera supports intelligent tamper detection, which is to generate warning message via detecting dramatic scene change and to guarantee effective video surveillance. Wide Dynamic Range (WDR) The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, true WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video. Smart IR Technology With IR illumination, detailed images can be captured in low light or total darkness. The camera’s Smart IR technology adjusts the intensity of camera’s infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera’s integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft). Protection (IP67, wide voltage) The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 2KV lightning rating provides effective protection for both the camera and its structure against lightning. Subjected and certified to rigorous dust and immersion tests (IP67) , the camera is the choice for installation in even the most unforgiving environments. Environmental Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -30° C to +60° C (-22° F to +140° F) with 95% humidity. Image Flip Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera’s image to be rotated in 90° increments for better video optimization. Interoperability The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.
Technical Specification
Camera Image Sensor 1/2.7” 5Megapixel progresive CMOS Effective Pixels 2592(H) x1944(V) RAM/ROM 512MB/32MB Scanning System Progressive Electronic Shutter Speed Auto/Manual, 1/3~1/100000s Minimum Illumination 0.03Lux/F2.0( Color,1/3s,30IRE) 0.3Lux/2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on) S/N Ratio More than50dB IR Distance Distance up to 30m(98ft) IR On/Off Control Auto/ Manual IR LEDs 12 Lens Lens Type Fixed Mount Type Board-in Focal Length 2.8 mm (3.6 mm optional) Max. Aperture F2.0/F2.0 Angle of View H:96°/78°, V:70°/58° Focus Control Fixed Close Focus Distance N/A DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 63(207ft) 25(82ft) 13(43ft) 6(20ft) 3.6 mm 80(262ft) 32(105ft) 16(52ft) 8(26ft) PTZ Pan/Tilt Range Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° Intelligence Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly IVS Tripwire, Intrusion Video Compression H.265/H.264H/MJPEG(Sub Stream) Smart Codec Support H.265+/H.264+ Streaming Capability 2 Streams Resolution 5M(2592×1944)/4M(2688×1520)/3M(2304×1296/2048 x1536)/1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480)/VGA(640×480)/ CIF(352×288/352×240) Frame Rate Main Stream: 5M(1 ~ 15fps)/3M (1 ~ 25/30fps) Sub Stream: D1(1 ~ 25/30fps) Bit Rate Control CBR/VBR Bit Rate H.265: 12K ~ 8448Kbps H.264: 32K ~ 10240Kbps Day/Night Auto(ICR) / Color / B/W BLC Mode BLC / HLC / WDR(120dB) White Balance Auto/Natural/Street Lamp/Outdoor/Manual Gain Control Auto/Manual Noise Reduction 3D DNR Motion Detection Off / On (4 Zone, Rectangle) Region of Interest Off / On (4 Zone) Electronic Image Stabilization (EIS) N/A Smart IR Support Digital Zoom 16x Flip 0°/90°/180°/270° Mirror Off / On Privacy Masking Off / On (4 Area, Rectangle) Audio Compression N/A Network Ethernet RJ-45 (10/100Base-T) Protocol HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP; FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP; NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS Interoperability ONVIF Profile S&G, API Streaming Method Unicast / Multicast Max. User Access 10 Users / 20 Users Edge Storage NAS Local PC for instant recording Web Viewer IE, Chrome, Firefox, Safari Management Software Smart PSS, DSS, DMSS Smart Phone IOS, Android Certifications Certifications CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B Interface Video Interface N/A Audio Interface N/A RS485 N/A Alarm N/A Electrical Power Supply DC12V, PoE (IEEE 802.3af)(Class 0) Power Consumption < 6W Lite Series | DH-IPC-HDW1531S
