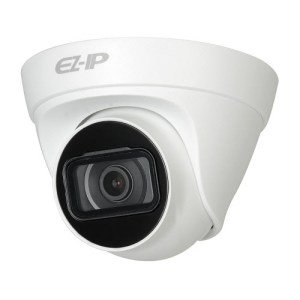

Dahua 2mp IP Camera EZ-IPC-T1B20P-L-0360B

Mini-dome network camera, 2MEGA (1920×1080, 20k / s), 1 / 2.7 ”2Megapixel progressive scan CMOS, day / night (mechanical IR filter), f3.6mm / F2.0 lens, viewing angle 87.5 °, 0.09lk /F2.0 (color), 0лк / F2.0 (b / w, IR-illumination on), intelligent IR-illumination 30m, H.265 + / H.265 / H.264 + / H.264 / MJPEG (2 streams), ONVIF, DWDR, 3DNR, AWB, AGC, BLC, ROI, 85.5 (H) x109 (D) mm, IP67, -30 … + 60 ° C, 12VDC / 4.8W, PoE (802.3af ). Built-in lightning protection up to 2 kV.
Purpose The network dome camera EZ-IPC-T1B20P-L is designed to provide 24-hour video transmission of the protected area to the equipment for collecting, displaying and storing video information, an autonomous or centralized security center. The video stream of the network camera is transmitted in a digital format over an Ethernet network using the IP protocol. A digital image formed by a video camera can be displayed on a monitor using a network recorder or a PC. The camcorder has an IP67 rating and is approved for outdoor use. Special features The EZ-IPC-T1B20P-L high resolution dome camera with IR illumination is designed to monitor small rooms and outdoor areas. Thanks to a number of features to improve the quality, color and noise reduction, it allows you to get a clear and high-quality image with high detail both day and night. Optimized codec Smart H.265 provides savings of up to 70% of network bandwidth (compared to H.264) and reduces the cost of storing video without loss of quality. The camera is equipped with built-in lightning protection up to 2 kV. Specifications
1 / 2.7 ”2Megapixel progressive scan CMOS video sensor (1920×1080)
Minimum illumination of 0.09 Lx / F2.0 (color.), 0 Lx / F2.0 (IR on)
Automatic day / night mode (mechanical infrared filter), intelligent infrared illumination 30m
The fixed lens 2.8 / 3.6mm (115? /87.5? Horizontally), F2.0
S / N ratio> 50dB
Extended dynamic range DWDR, 3DNR noise reduction, AWB, AGC, BLC functions
Area of ​​interest (ROI), up to 4 zones; private areas
H.265 / H.264 / MLPEG coding, main stream 2MEGA (20k / s), additional stream D1 / CIF (25k / s), controlled frame rate and bandwidth, support for Unicast and Multicast, RTSP
H.265 Bitrate: 12Kbps ~ 5632Kbps; H.264: 32Kbps ~ 8192Kbps
Multi-user multi-level access with password protection (max. 20 users simultaneously), HTTPS
Supported HTTP protocols; TCP; ARP; RTSP; RTP; RTCP; UDP; DHCP; DNS; IPV4; NTP; Multicast; ICMP; Tls
ONVIF S & G Compatibility
Monitoring: WEB browser or free software SmartPSS / DSS, iOS, Android
Body material metal + plastic
Built-in lightning protection up to 2 kV
Power Supply 12VDC / PoE (802.3af), <4.8W
Operating temperature -30 … + 60 ° C
IP67 degree of protection
Overall dimensions 109Fh85,5 mm
Weight 240g
Compatible for installation with brackets PFA 130-E, PFB203W, PFA 152-E, PFA151, PFA106, PFB220C
